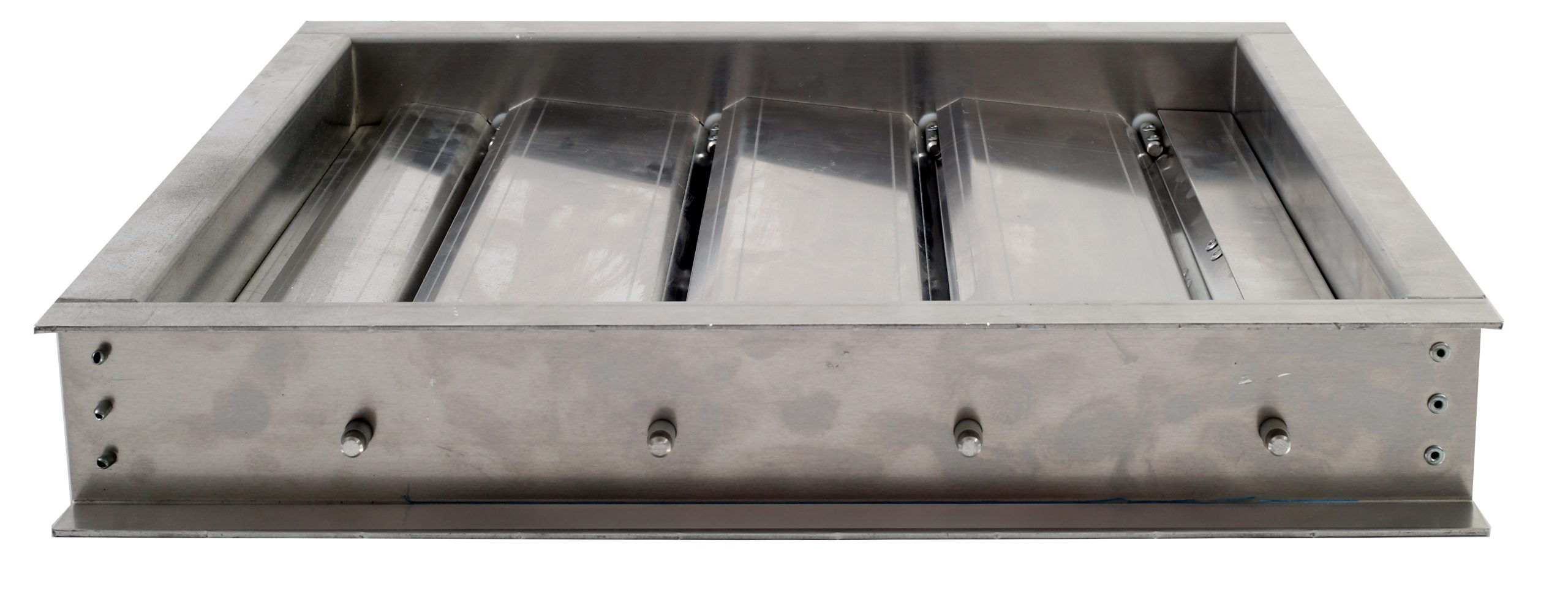

Aluminium Backdraft Dampers
Description
MINIMUM DAMPER SIZE
Single Section :60″ width (1219mm) × 72″ H(1829mn)
MAXIMUM DAMPER SIZE
Single Blade :6″ width (152.4mm) x 6″ H(152.4mm)
All dampers are fabricated 1/4″ (6.4) under listed size unless specified “actual or exact. Dampers must be installed square and free from racking
BEARINGS
Nylon press fit into frame
LINKAGE BRACKET
Aluminum 0.90
LINKAGE
Stainless steel 304
FRAME
0.09″ Aluminum 5052
BLADES
0.06 formed Aluminum 5052 with weatherstrip seal. Width between 5″ (127)and 6″ (152.4) depending on damper size.
FINISH
Mill Finish
AXLES
1/4″ (6.4) diameter Aluminum 5052
OPTIONS:
• Counter Balance
• Flange frame (front or rear)
• Electric motor operators
• Chain operator
• Horizontal mount
• Special finishes
